High Precision Water Vapor Permeation Testing Instrument Of Packaging Film Barriers

  • High Precision Water Vapor Permeation Testing Instrument Of Packaging Film Barriers
  • High Precision Water Vapor Permeation Testing Instrument Of Packaging Film Barriers
Certification ISO 9001, CE
Model Number W3/230
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Veneer Case
Delivery Time 3-7 work days
Supply Ability 1 set per 3 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Test Method Infrared Sensor Method Test Range 0.1～1000g/m2·24h
Standard ISO 15106-2, ASTM F1249 Training Free, Door-to-door
Warranty 12 Months Dimesnion 690 Mm (L) X 350 Mm (W) X 360 Mm (H)
Highlight

Water Vapor Transmission Testing Equipment

,

Moisture Vapour Transmission Rate Tester
Leave a Message
Product Description

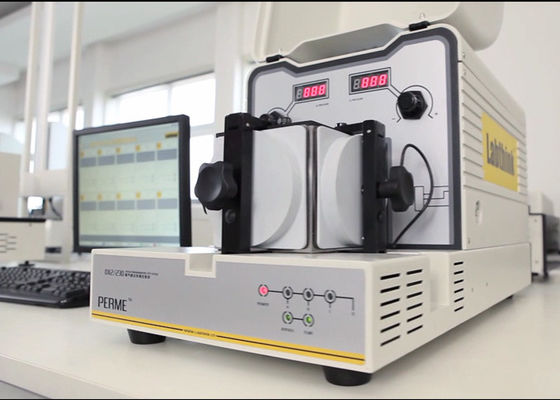

Precision Water Vapor Permeation Testing Instrument of Packaging Film Barriers.



The W3/230 Water Vapor Permeation Testing Instrument utilises the sensitive and stable infrared sensor for absolute moisture measurement. This Water Vapor Permeation Testing Instrument offers a wide measurement range of 0.1～1000g/m²/day and precision temperature, humidity and flow control. Providing accurate and repeatable results for research and development testing of water transmission rate (wvtr) in both current and newly formulated packaging film materials and fast testing for Quality Control.

Specification

Industry: Packaging
Gas: Water Vapor
Application: Permeation
Measurement range (Film): 0.1 ~ 1000 g/m2·24h
Measurement range(Packages: 0.0001 ~ 0.2 g/pkg·d
Test temperature range: 15°C ~ 55°C
Test RH range: 0%RH, 35%RH ~ 90%RH, 100%RH
Dimensions: 690 mm (L) x 350 mm (W) x 360 mm (H)
Weight: 70 kg



Features and Benefits

  • Easy to use operator interface
  • Simple to operate due to the high degree of automation
  • Fast and accurate test results
  • Broad testing range covering low and high permeability
  • Automatic equilibrium detection
  • Automatic temperature control
  • Easy set-up of test parameters and sample data
  • Complete traceability in test documentation, data logging and error reports
  • Easy to use test sample holders
  • RS232 interface for communication with PC
  • Built-in printer
  • Low degree of maintenance

Applications

  • Films
  • Barriers on SiOx substrate
  • Metallized packaging foils
  • Impermeable fabrics
  • Surgical and hygienic membrance
  • PUR-coated farbrics for nursing
  • Roofing felt and roofing water vapour barrier
  • Stable fibre coatings and coated paper

 High Precision Water Vapor Permeation Testing Instrument Of Packaging Film Barriers 0



High Precision Water Vapor Permeation Testing Instrument Of Packaging Film Barriers 1
