Automatic Gas Transmission Rate Tester , Gas Permeability Analyzer for plastic packaging

  • Automatic Gas Transmission Rate Tester , Gas Permeability Analyzer for plastic packaging
  • Automatic Gas Transmission Rate Tester , Gas Permeability Analyzer for plastic packaging
Certification ISO 9001, CE
Model Number VAC-V2
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Veneer Case
Delivery Time 3-7 work days
Supply Ability 1 set per 3 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Method Differential Pressure Method Training Free, Door-to-door
Temperature 5°C ~ 95°C Test Gas O2, N2 And CO2 (outside Of Supply Scope)
Instrument Dimension 760 Mm (L) X 575 Mm (W) X 450 Mm (H) Net Weight 88 Kg
Highlight

Gas Permeability Analyzer

,

Gas Transmission Rate Tester
Leave a Message
Product Description

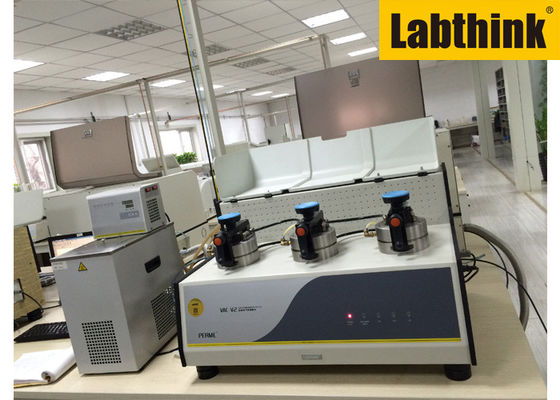

Automatic Cosmetic Packagig Gas Permeability Analyzer with 3 Stations



VAC-V2 Gas Permeability Analyzer    can be used to measure gas permeability rate, solubility coefficient, diffusion coefficient and permeability coefficient at various temperature of plastic films, laminated films, high barrier material, sheets, foils, etc.





Features

  • Complies with ISO 15105-1, ISO 2556, GB/T 1038-2000, ASTM D1434, JIS K7126-1, YBB 00082003
  • Three test cells for independent results
  • Quick start Function
  • RS232
  • Easy sample preparation
  • Controlled by computer

Specifications

Number of Specimens 3 (with independent test results)
Vacuum Resolution 0.1 Pa
Vacuum Degree of Test Chamber <20 Pa
Specimen Size Φ97 mm
Test Area 38.48 cm2
Test Gas O2, N2 and CO2 (outside of supply scope)
Test Pressure -0.1 MPa ~ +0.1 MPa
Gas Supply Pressure 0.4 MPa ~ 0.6 MPa
Port Size Φ6 mm PU Tubing
