Digital Elmendorf Tearing Tester For Plastic Films / Paper SLY-S1
| Certification | ISO 9001, CE |
|---|---|
| Model Number | SLY-S1 |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Veneer Case |
| Delivery Time | 3-7 work days |
| Supply Ability | 1 set per 3 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Test Method | Elmendor Method | Capacitry | 200 -6400 Gf |
|---|---|---|---|
| Dimension | 480 Mm (L) X 380 Mm (W) X 560 Mm (H) | Standards | ISO 6383, ASTM D1922, ASTM D1424 |
| Power Supply | AC 220V 50Hz | ||
| Highlight | Digital Elmendorf Tearing Tester,Elmendorf Tearing Strength Tester |
||
Product Description

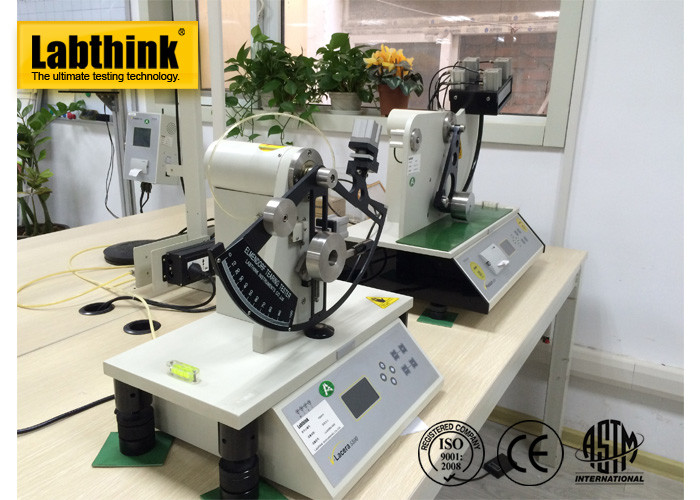

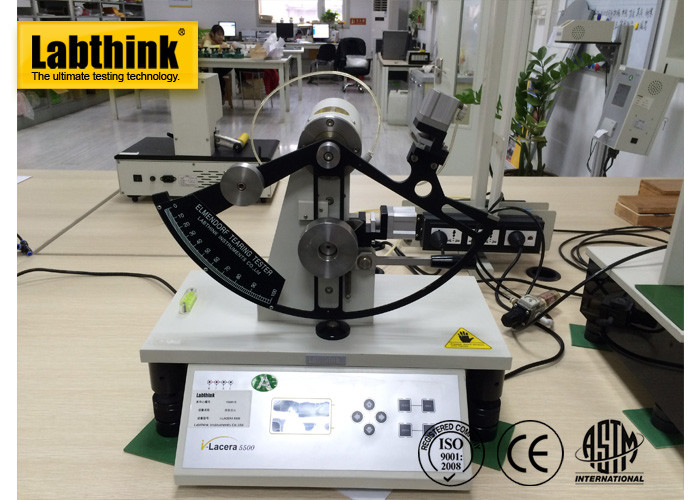

Digital Elmendorf Tear Strength Test Equipment for Plastic Films and Paper
ASTM D1922, ASTM D1424, ASTM D689, ISO 13937-1, ISO 6383, ISO 1974, GB/T16578.2-2009, GB/T 455, TAPPI T414
Digital Elmendorf Tearing Tester takes the Elmendorf method and is used to determinate tearing resistance property of films, sheets, flexible PVC, PVDC, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textile and non-woven, etc.
Features:
- PLC control and touch screen operation
- Contact area and pressure are standards conformed.
- Pneumatic specimen clamping and pendulum automatic release
- Data auto statistics, storage and micro printing
- RS232 port and software (Optional)
Technical Specifications
| Pendulum Capacity | 200gf, 400gf, 800gf, 1600gf, 3200 gf, 6400 gf |
| Gas Source | 0.6 Mpa |
| Tearing Arm | 104±1mm |
| Tearing Initial Angle | 27.5±0.5o |
| Power |
AC 220V, 50Hz (customization available) |
For more information about Elmendorf Tear Strength Tester, please call us 86-531-85068566 or click our website en.labthink.com
